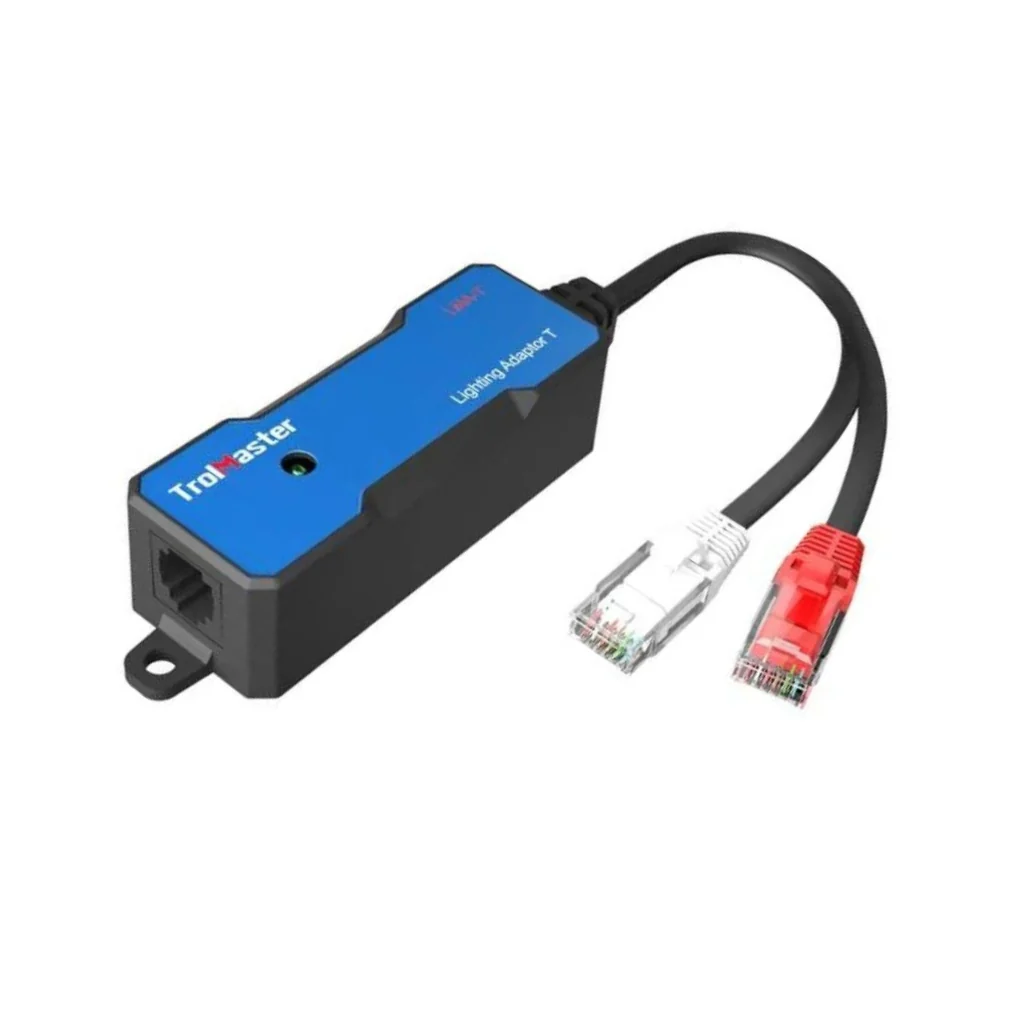

TrolMaster Lighting Control Adaptor T (LMA-T)

The TrolMaster Lighting Control Adapter T (LMA-T) is specifically designed to integrate ThinkGrow LED systems with the Hydro-X Control System, providing precise two-channel control over your lighting setup.

Key Features

• Dual-Channel Control: Allows separate management of full-spectrum and second red output levels on ThinkGrow LEDs, enabling customized lighting strategies.

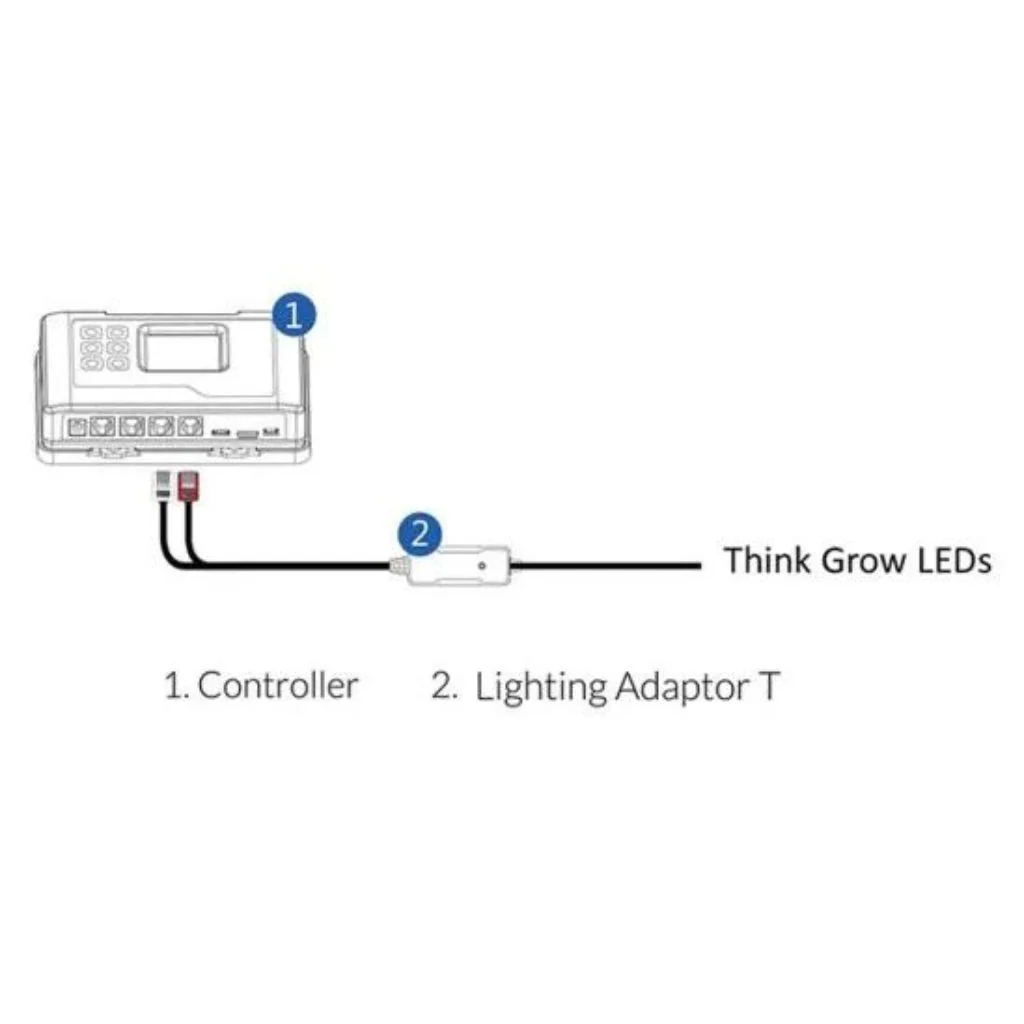

• Plug & Play Integration: Easily connects to the Hydro-X system's lighting control ports (Line 1 and Line 2) for straightforward installation.
• Daisy-Chain Configuration: Supports connection of up to 256 ThinkGrow LEDs in a series using RJ-type lighting control cables, simplifying large-scale setups.
• LED Power Indicator: Provides a clear visual status of the adapter's operation for easy monitoring.

Specifications

Specification	Details
Output Voltage	0~11.5V
Maximum Current	0.2A
Working Temperature	32-122°F (0-50°C)
Working Humidity	≤90%
Package Dimensions	156mm (L) x 83mm (W) x 30mm (H)
Weight	0.05 kg

Package Contents

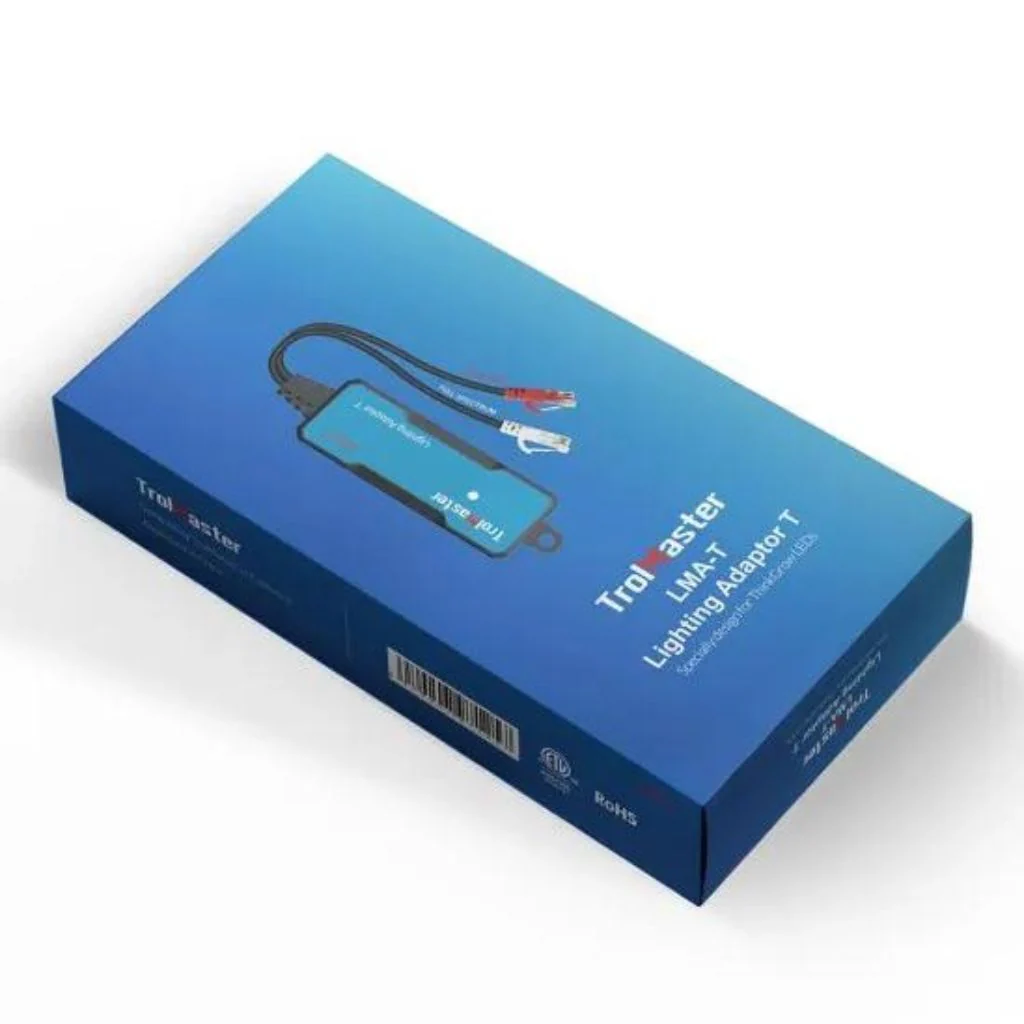

• 1 x Lighting Control Adapter T (LMA-T)
• 1 x RJ12 to customized waterproof connector
• 1 x ECS-9 cable

The LMA-T adapter enhances your Hydro-X system by providing precise control over ThinkGrow LED lighting, facilitating optimal growth conditions for your plants.
