AquaMaster Peristaltic Pumps
The Aqua Master Tools C-series peristaltic pumps are designed for high-precision, automated dosing of nutrient solutions and pH regulators in hydroponic and irrigation systems. These modular units work seamlessly with Aqua Master controllers and can be mechanically linked to create a customized dosing array tailored to your setup's specific needs.
Each pump is equipped with a manual priming button for easy setup, maintenance, and tube draining. The peristaltic design ensures that liquids only come into contact with the tubing, preventing contamination and ensuring long-term reliability.
Modular Configuration
The C-series system is fully expandable. While the C10 serves as either a standalone pH or nutrient pump, the C20 and C30 are primarily nutrient dosing units that can be combined to manage up to 5 nutrient lines and 1 pH line per controller.
- C10: Single-channel unit for pH (up/down) or 1 nutrient line.
- C20: Dual-channel unit for 2 nutrient lines.
- C30: Triple-channel unit for 3 nutrient lines
Aqua Master C10 Peristaltic Pump
The C10 is a versatile, single-channel pump. When connected to the pH port of your controller, it functions as a dedicated pH regulator (either pH+ or pH-). When connected to the nutrient port, it serves as a single EC dosing line. It can also be added to a C30 unit to expand the system to 4 nutrient lines.
Aqua Master C20 Peristaltic Pump
The C20 features two independent peristaltic pumps specifically for nutrient (EC) dosing. It is ideal for systems requiring two basic nutrients. While it can connect directly to a controller, it also functions as an extension for the C30, bringing the total nutrient dosing capacity to 5 lines. Note that the C20 is not designed for pH adjustment.

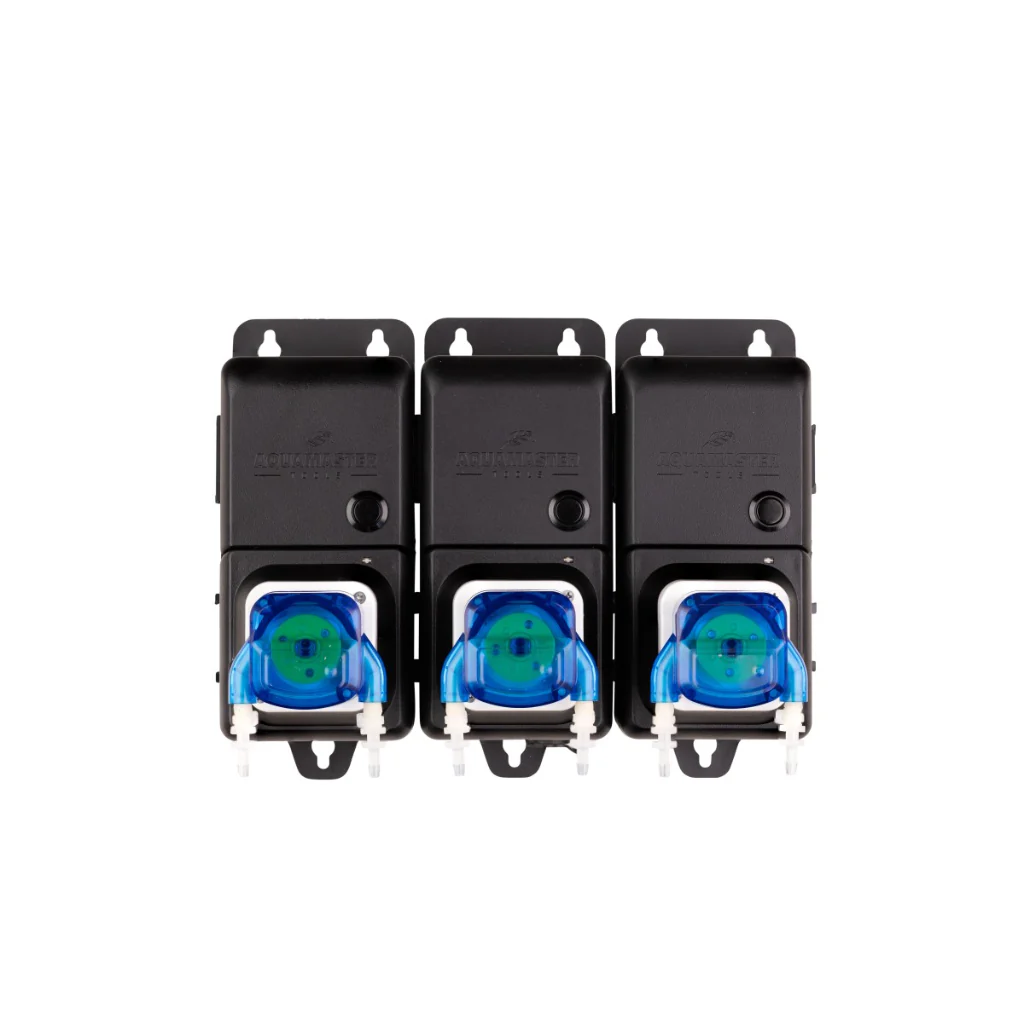

Aqua Master C30 Peristaltic Pump
The C30 is the professional-grade base unit for nutrient dosing, featuring three independent pumps. It is designed to handle three different nutrients simultaneously. The C30 is unique in the series as it includes a UTP output port, allowing you to link additional C10 or C20 units to build out a complete automated dosing rack.
Specifications Comparison
| Feature | C10 (Single) | C20 (Dual) | C30 (Triple) |
|---|---|---|---|
| Number of Pumps | 1 | 2 | 3 |
| Primary Function | pH Control or Nutrient (EC) | Nutrient (EC) Dosing | Nutrient (EC) Dosing |
| Flow Rate (per pump) | 1.5 ml/sec (90 ml/min) | 1.5 ml/sec (90 ml/min) | 1.5 ml/sec (90 ml/min) |
| Expansion Port | UTP Input | UTP Input | UTP Input & Output |
| Power Consumption | 6 W | 6 W | 6 W |
| Tube Lifetime | 1000 Hours | 1000 Hours | 1000 Hours |
| Motor Lifetime | 800 Hours | 800 Hours | 800 Hours |
| Operating Temp | 5°C - 50°C | 5°C - 50°C | 5°C - 50°C |
| Dimensions (mm) | 63 x 159 x 100 | 129 x 159 x 100 | 197 x 159 x 100 |
| Weight | 236 g | 472 g | 706 g |
Package Contents
C10 Unit
1x C10 dosing pump
1x 3-meter dosing tube
1x 150 cm UTP cable
1x International power adapter
C20 Unit
1x C20 dosing unit (2 pumps)
2x 3-meter dosing tubes
1x 150 cm UTP cable
1x International power adapter
C30 Unit
1x C30 dosing unit (3 pumps)
3x 3-meter dosing tubes
1x 150 cm UTP cable (for controller)
1x 50 cm UTP cable (for expansion)
1x International power adapter
